DVD components-enabled microscope, CRISPR labeling map DNA mutations
Seeking to transform the way disease-causing genetic mutations are diagnosed and discovered, a team of scientists at the University of Bristol and colleagues has developed a new nanomapping microscope that is powered by the laser and optics found in a typical DVD player.
Related: 'Lab-on-DVD' approach enables fast, cheap HIV testing
The microscope maps hundreds of chemically barcoded DNA molecules every second in a technique developed in collaboration with scientists at Virginia Commonwealth University, led by Professor Jason Reed. Professor Reed's team uses CRISPR-Cas9 to label the molecules so that they can be mapped almost as accurately as DNA sequencing, while also processing large sections of the genome at a much faster rate.
Using off-the-shelf DVD components, the Bristol team supercharged their atomic force microscope (AFM) to enable it to physically map the lengths of individual DNA molecules to a resolution of tens of base pairs at rates of hundreds per second. This speed increase enables this DNA barcoding method to be used for real-world diagnostics.
AFM achieves this level of detail by using a microscopic stylus that barely makes contact with the surface of the material being studied. The interaction between the stylus and the molecules creates the image. However, traditional AFM is too slow for medical applications, so it is primarily used by engineers in materials science.
The microscope measures single DNA molecules with sub-atomic resolution while creating images up to a million base pairs in size. And it does it using a fraction of the amount of specimen required for DNA sequencing, dramatically reducing the measurement time.
"Using the laser focusing mechanism found in every DVD player we have built a microscope that has the resolution and speed to measure every molecule on the sample surface in 3D," explains Oliver Payton of the University of Bristol's School of Physics, who co-invented the nanomapping microscope. "Although other types of microscopes have the resolution to see these DNA molecules, they are thousands of times slower and it would take years to make a confident diagnosis. Not only is our microscope perfect for these medical applications, but because of the readily available DVD player components, it can be mass-produced."
CRISPR is an enzyme that scientists have been able to program using targeting ribonucleic acid (RNA) to cut DNA at precise locations that the cell then repairs on its own. The chemical barcoding method developed by Professor Reed's team alters the chemical reaction conditions of the CRISPR enzyme so that it only sticks to the DNA and does not actually cut it.
"Because the CRISPR enzyme is a protein that's physically bigger than the DNA molecule, it's perfect for this barcoding application," Reed says. "We were amazed to discover this method is nearly 90% efficient at bonding to the DNA molecules. And because it's easy to see the CRISPR proteins, you can spot genetic mutations among the patterns in DNA."

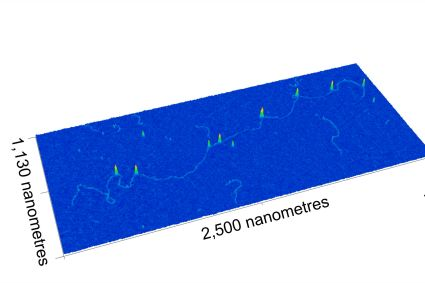

To demonstrate the technique's effectiveness, researchers mapped genetic translocations present in lymph node biopsies of lymphoma patients. Translocations occur when one section of the DNA gets copied and pasted to the wrong place in the genome. They are especially prevalent in blood cancers such as lymphoma but occur in other cancers as well.
The Bristol team is also using the new microscope to solve a diverse range of nanoscale challenges across fields such as 2D materials, corrosion, and life sciences, and it is being commercialized via University of Bristol spinoff company Bristol Nano Dynamics Limited.
Full details of the work appear in the journal Nature Communications.
