16k line scan camera acquires up to four images in a single pass

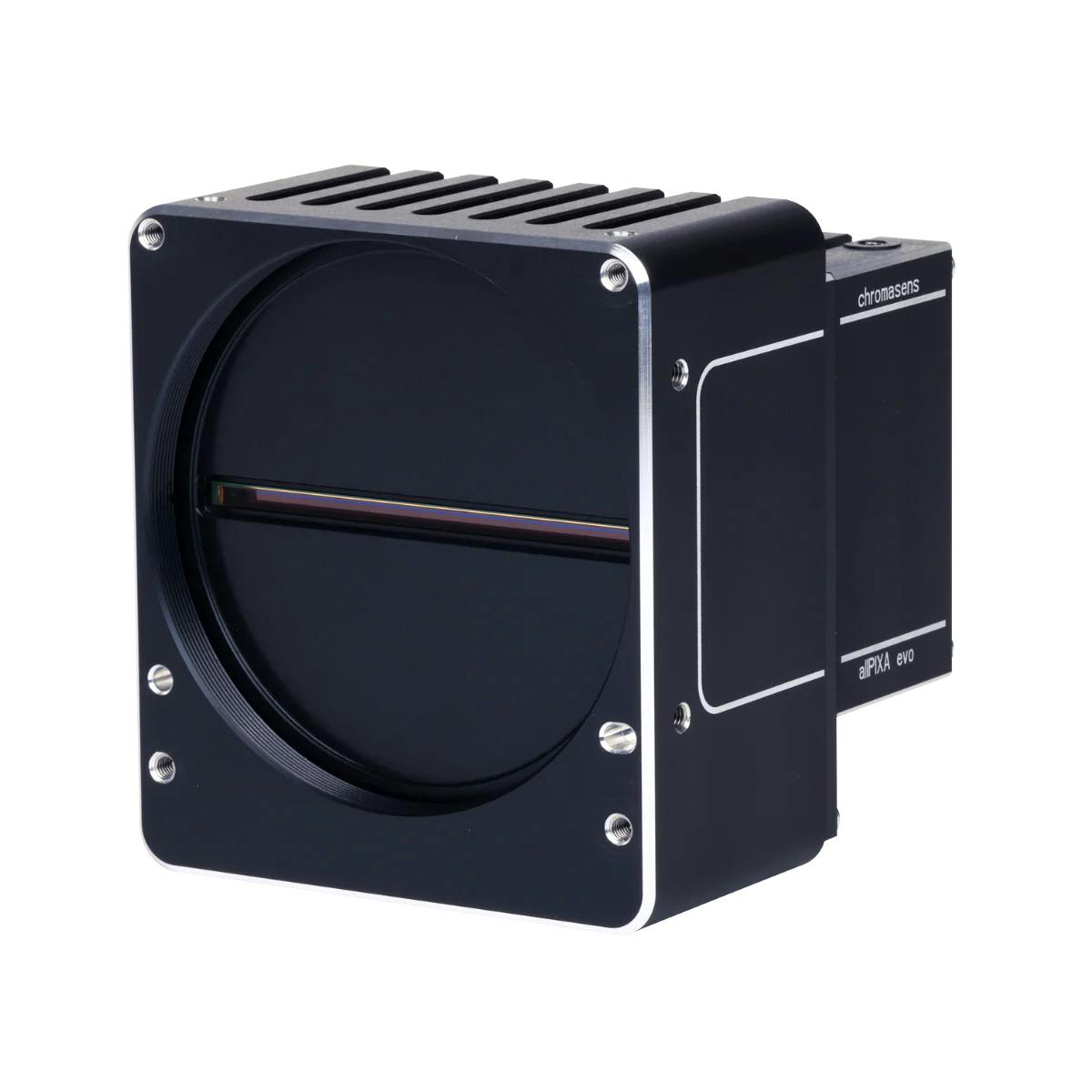

The allPIXA evo 16k line scan camera uses a CMOS multiline sensor with 16,384 5 × 5-μm pixels, and offers scan rates of 200 kHz monochrome or 73 kHz color. A multifield feature enables up to four images to be acquired in a single pass. Each of the four CoaXPress-12 (CXP-12) lanes provides 12.5 Gbit/sec.

Chromasens

Konstanz, Germany

www.chromasens.de
