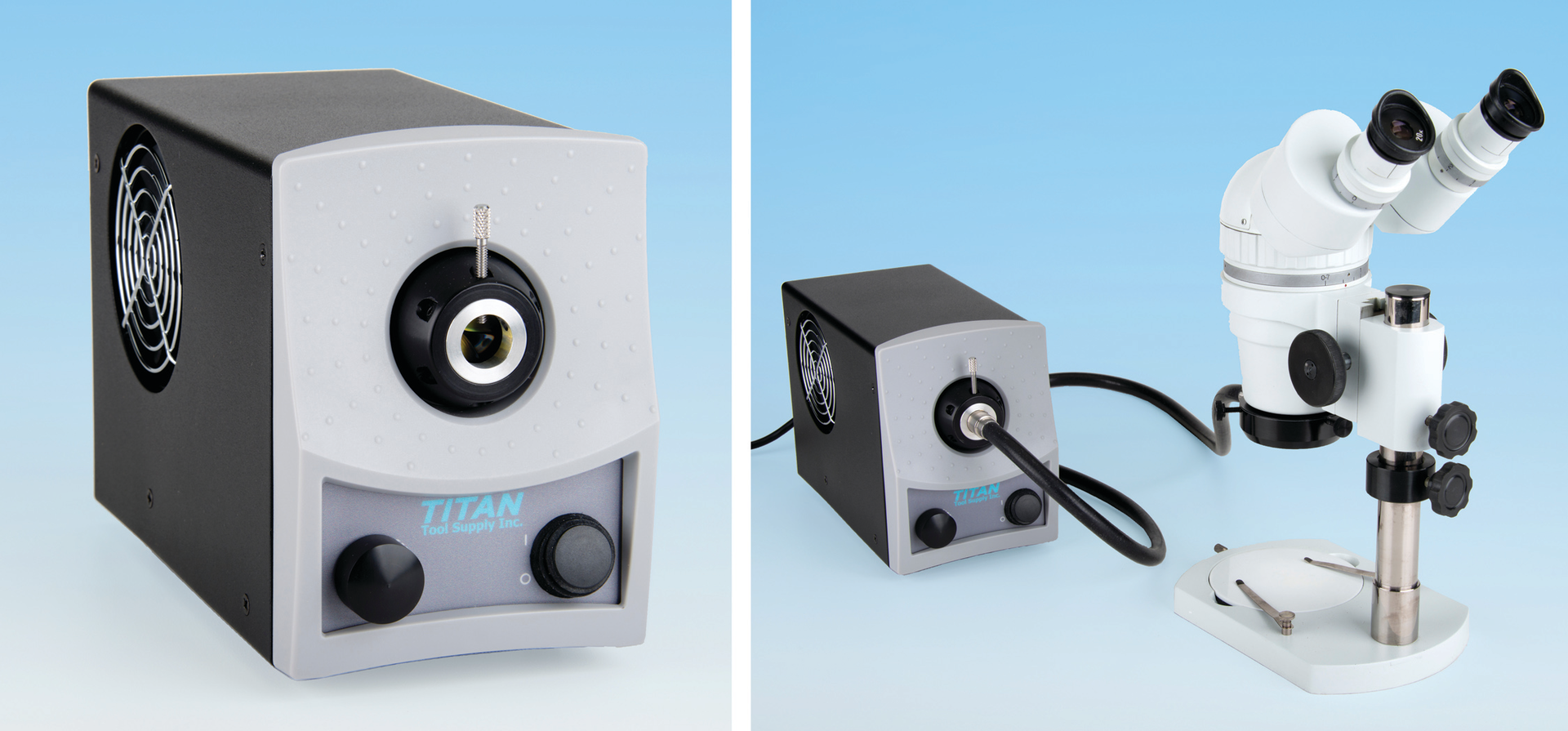

Titan Tool Supply fiber-optic illuminator has linear light intensity control
The LuxPro LED fiber-optic illuminator provides high-output light for borescopes and microscopes. It provides consistent 4500 K color temperature and has linear light intensity control with continuous dimming. It has a standard 0.625 in. light guide fitting and adapters for most light guides and fibers with diameters from 0.187 to 1 in.
Titan Tool Supply
Buffalo, NY
[email protected]
More Products
-----
PRESS RELEASE
New âLuxProâ LED Fiberoptic Light System Introduced by Titan Tool Provides High-Output Illumination for Borescopes and Microscopes
Cost savings for LED vs. quartz halogen EKE fiberoptic lighting offer payback in less than 2 years.
Titan Tool Supply, Inc., Buffalo, New York, announces the introduction of its new LuxPro LED fiberoptic illuminator to provide high-output light for borescopes and microscopes. Designed to exceed the brightness of a 150-watt halogen bulb while reducing energy consumption by approximately 50%, the new LuxPro illuminator offers optimal thermal management to maximize reliability and optical performance. Eliminating frequent replacement of lamps, the maintenance-free LED has a bulb life of 25,000 hours minimum, though 50,000 hours is typical, according to Titan Tool.
Priced at $625.00, the new LuxPro LED fiberoptic illuminator offers payback in less than two years compared to quartz halogen EKE fiberoptic illuminators, Titan Tool states. Halogen lamps need to be changed every 200 hours. Operating 2,000 hours per year, 10 replacement halogen lamps ($250.00 total @$25.00 each) are needed, and at 15 minutes per lamp change, 2-1/2 hours spent per year replacing lamps. Based on $20.00/hour for a maintenance worker to replace a lamp, plus $20.00/hour that the operator is idle, downtime costs can be $100.00 annually. In addition the new LuxPro uses a maximum of 80 watts while a standard quartz halogen EKE lamp will consume 150 watts. According to average national electricity rates ($0.135/kwh), LuxPro will reduce energy costs approximately $19.00 per year (over 2,000 hours), the company states.
The new LuxPro illuminator features linear light intensity control with continuous dimming and accepts virtually any light guide with quick change adapters, the company states. It provides consistent color temperature (cool white 4500 K) and is equipped with a standard 0.625â light guide fitting (nosepiece). Since Titan Tool can supply an adapter for virtually any size diameter fiberoptic cable from 0.187â to 1.0â (including Fostec 0.718â and ACMI), customers can use their current fiberoptic guides and ring lights.
Advanced heat pipe technology of the LuxPro uses metal core PCBs, and precision-engineered cooling provides quiet operation.
The lightweight (7 lbs./3.2 kg) unit has rugged housing and a small footprint of 6â H x 4.75â W x 9â D (15.2 cm H x 12.1 cm W x 22.9 cm D) suitable for mounting and stacking in constrained areas. A universal power source connector enables worldwide operation from 96-264 VAC, 50-60 Hz.
Manufactured and tested in the USA, the new Titan Tool LuxPro LED fiberoptic illuminator features a one-year warranty and is part of a complete range of LED, fluorescent, and incandescent illuminators offered by the company, all in-stock for immediate shipment.
For more information, contact Titan Tool Supply, Inc., 68 Comet Avenue, Buffalo, NY 14216. Phone: 716-873-9907. Fax: 716-873-9998. Email: [email protected]. www.TitanToolSupply.com. For detailed product information or to download a PDF file product sheet, visit: http://www.titantoolsupply.com/LuxPro%20LED%20Fiberoptic%20Illuminator
-----
