Compared to conventional thin-film-transistor liquid-crystal (TFT LCD) or active-matrix organic light-emitting diode (AMOLED) displays, a new digital micro-shutter (DMS) display from Pixtronix (Andover, MA) consumes one-quarter of the power while delivering equivalent image quality.

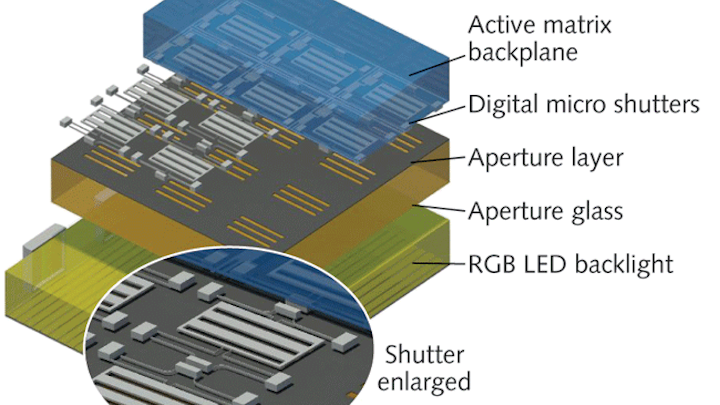

Using standard TFT LCD manufacturing equipment, processes, and materials, a microelectromechanical systems (MEMS) shutter is built on top of an active backplane and a simple aperture plate replaces the color filter. Essentially, the DMS technology is made of four key elements: a digital micro-shutter (laterally translating) element at the heart of each pixel that uses a patented zipping actuator; the use of field-sequential color with color-change frequencies greater than 1 kHz to avoid flicker or color breakup; an optical architecture with a light-recycling LED backlight that allows an 11.5% aperture-ratio display to transmit 60% of the light to the viewer (10 times the output of liquid-crystal displays); and a digital-backplane circuit. Pixtronix has announced partnerships with both Hitachi Displays (Japan) and Chimei Innolux (Taiwan) and has developed 2.5 in. QVGA display prototypes that can run 60 Hz videos, achieve a 135% NTSC color gamut, have a 170° viewing angle and 24 bit color, and consume less than 50 mW of backlight power. Contact Mark Halfman at [email protected].
