Food and beverage waste makes sustainable carbon-based LEDs possible

Two University of Utah (Salt Lake City, UT) researchers have found a way to create light-emitting diodes (LEDs) from food and beverage waste, a sustainable use of materials that would otherwise decompose and be of no use. This development can also reduce potentially harmful waste from LEDs generally made from toxic elements.

RELATED ARTICLE: Graphene fluorescent quantum dots can be extracted cheaply from coal, resist photobleaching

LEDs can be produced by using quantum dots, or tiny crystals that have luminescent properties, to produce light. Quantum dots (QDs) can be made with numerous materials, some of which are rare and expensive to synthesize, and even potentially harmful to dispose of. Some research over the past 10 years has focused on using carbon dots (CDs), or simply QDs made of carbon, to create LEDs instead.

Compared to other types of quantum dots, CDs have lower toxicity and better biocompatibility, meaning they can be used in a broader variety of applications. Utah Metallurgical Engineering Research Assistant professor Prashant Sarswat and professor Michael Free, over the past year and a half, have successfully turned food waste into CDs, and subsequently, LEDs.

The results were published in Physical Chemistry Chemical Physics, a journal of the Royal Society of Chemistry.

To synthesize waste into CDs, Sarswat and Free employed a solvothermal synthesis, or one in which the waste was placed into a solvent under pressure and high temperature until CDs were formed. In this experiment, the researchers used soft drinks and pieces of bread and tortilla.

The food and beverage waste were each placed in a solvent and heated both directly and indirectly for anywhere from 30 to 90 minutes. After successfully finding traces of CDs from the synthesis, Sarswat and Free proceeded to illuminate the CDs to monitor their formation and color.

The pair also used four other tests: Fourier transform infrared spectroscopy, x-ray photoelectron spectroscopy, Raman, and AFM imaging to determine the CDs' various optical and material properties. "Synthesizing and characterizing CDs derived from waste is a very challenging task. We essentially have to determine the size of dots which are only 20 nanometers or smaller in diameter, so we have to run multiple tests to be sure CDs are present and to determine what optical properties they possess," said Sarswat.

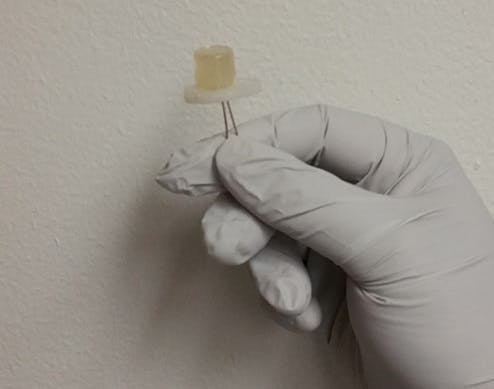

The various tests Sarswat and Free ran first measured the size of the CDs, which correlates with the intensity of the dots' color and brightness. The tests then determined which carbon source produced the best CDs. For example, sucrose and D-fructose dissolved in soft drinks were found to be the most effective sources for production of CDs. Finally, the CDs were suspended in epoxy resins, heated and hardened to solidify the CDs for practical use in LEDs.

Currently, one of the most common sources of QDs is cadmium selenide, a compound comprised of a two toxic elements. The ability to create QDs in the form of CDs from food and beverage waste would eliminate the need for concern over toxic waste, as the food and beverages themselves are not toxic.

In addition to being toxic when broken down, cadmium selenide is also expensive—one website listed a price of $529 for 25 ml of the compound. "With food and beverage waste that are already there, our starting material is much less expensive. In fact, it's essentially free," said Sarswat.

According to a report from the US Department of Agriculture, roughly 31% of food produced in 2014 was not available for human consumption. To be able to use this waste for creating LEDs which are widely used in a number of technologies would be an environmentally sustainable approach. Looking forward, Sarswat and Free hope to continue studying the LEDs produced from food and beverage waste for stability and long term performance.

SOURCE: University of Utah; http://unews.utah.edu/u-researchers-create-light-emitting-diodes-from-food-and-beverage-waste/
