Advances in InGaAs APDs enhance laser rangefinder performance

Laser rangefinders (LRFs) are becoming indispensable tools within various fields, particularly defense applications, where precise distance measurement is crucial. These devices operate on the time-of-flight (ToF) principle, emitting a laser pulse that reflects off a target and returns to the sensor. By measuring the round-trip time and knowing the speed of light, the LRF calculates the distance to the target with high accuracy.

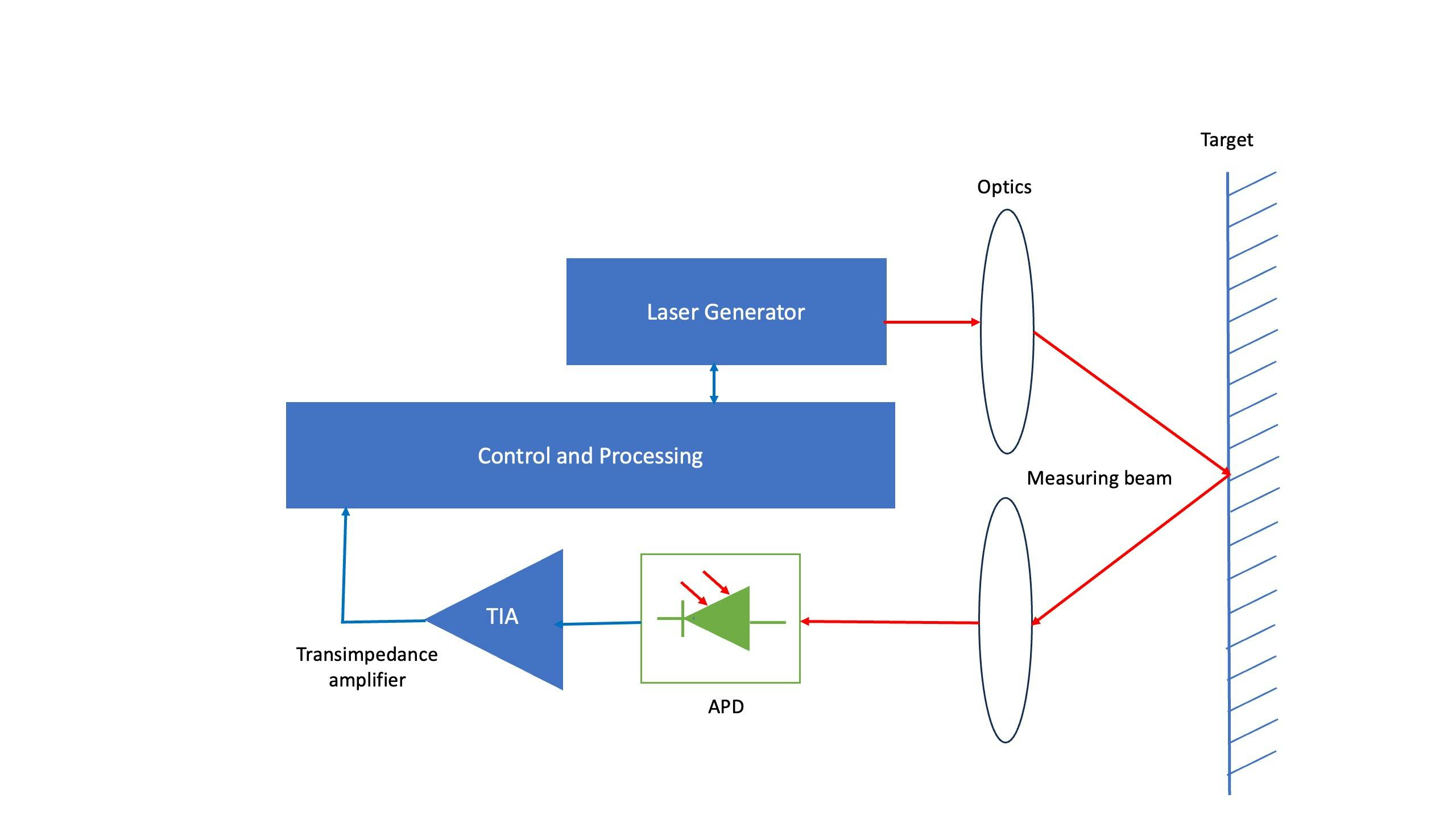

A typical LRF system comprises several key components, including a laser emitter, optical system, detector (usually an avalanche photodiode or APD), timing circuit, and signal processing unit (see Fig. 1). The laser emitter generates short, high-intensity pulses of light, typically within the infrared spectrum. An optical system focuses the emitted laser beam and collects the reflected light, and then the APD detector converts the incoming photons into an electrical signal that is processed by the timing circuit and signal processing unit to determine the distance.

LRF design

One of the primary challenges in LRF design is the need to detect a wide range of return signal strengths, from nanowatts to kilowatts per square centimeter, which requires a dynamic range in excess of 110 dB. This vast range is necessary because the returned signal strength can vary significantly depending on factors such as target distance, reflectivity, and atmospheric conditions. The detection circuit must also quickly recover after high-energy pulse events to detect subsequent signals from nearby objects—a crucial feature for applications where multiple targets may be present at different distances.

Recent developments in indium gallium arsenide (InGaAs) APD technology for 1550-nm lasers led to significant improvements in LRF performance. By incorporating antimony alloys into the APD structure (see Fig. 2), researchers are creating devices with high internal gain and exceptionally low excess noise. These advanced InGaAs APDs offer several key advantages over conventional devices. First, they demonstrate improved sensitivity by achieving the same signal-to-noise ratio (SNR) with approximately one-third of the photons required by conventional APDs.

This enhanced sensitivity translates directly into extended range capabilities, with typical LRF systems seeing an increase in effective range of up to 50%. In practical terms, this means an LRF equipped with advanced InGaAs APDs can accurately measure distances to targets that are 50% farther away compared to systems using conventional APDs, all other factors being equal. Moreover, the improved performance allows for the use of smaller receiver optics and lower-power lasers, which results in more compact and cost-effective LRF designs. This is particularly beneficial in applications where size, weight, and power consumption are critical factors, such as in handheld military rangefinders or drone-mounted systems.

To quantify these performance improvements, we can examine key metrics such as noise-equivalent power (NEP) and range performance. NEP is a critical parameter that determines the minimum detectable signal, essentially defining the sensitivity limit of the detector. Advanced InGaAs APDs demonstrate significantly lower NEP compared to conventional devices when integrated into a typical LRF system. This lower NEP translates directly into improved system performance, which enables detection of weaker return signals and extends the effective range of the rangefinder.

In a reference system with a SNR of 5:1, these new APDs can achieve ranges up to 50% greater than first-generation conventional InGaAs APDs. This substantial improvement of range performance can be a game-changer in many applications, particularly for defense scenarios where long-range target acquisition is crucial.

Another critical parameter for LRF performance is the recovery time of an APD after exposure to high-intensity light. This is particularly important for scenarios where the rangefinder might encounter highly reflective surfaces or nearby objects that could potentially saturate the detector. Advanced InGaAs APDs exhibit faster recovery times, which allows for the detection of subsequent reflections from objects just beyond an initial high-level reflection. This characteristic is particularly important in scenarios where multiple targets may be present at different distances, or in urban environments where reflective surfaces are common.

When incorporating advanced InGaAs APDs into LRF designs, engineers can take advantage of their improved performance in several ways (see Fig. 3). The higher sensitivity allows for smaller receiver lenses, decreasing the overall size and weight of the LRF. This can be particularly beneficial in portable or vehicle-mounted systems where space and weight are at a premium. To achieve the same performance as systems using conventional APDs, the laser power can be reduced, which leads to improved power efficiency and reliability. This not only extends battery life in portable systems but also reduces the thermal management requirements and further contributes to size and weight reductions. Furthermore, the enhanced sensitivity helps mitigate the effects of atmospheric conditions, oblique surfaces, and varying target reflectivity, which results in more robust performance within challenging environments. This is particularly important for defense applications, where rangefinders must operate reliably within diverse and often adverse conditions—from desert heat to arctic cold, and through dust, fog, or light rain.

Performance benefits of InGaAs APD technology

The latest advancements in InGaAs APD technology offer significant benefits for laser rangefinder systems, particularly for defense applications where size, weight, power, and performance are critical factors. By incorporating these new APDs, engineers can design more compact, efficient, and capable LRFs that outperform traditional systems in range, sensitivity, and reliability (see Fig. 4).

These improvements have far-reaching implications for defense applications. For target acquisition systems, extended range and improved sensitivity allow for earlier detection and identification of potential threats. In artillery systems, more accurate range finding at greater distances can significantly improve targeting precision. For reconnaissance and surveillance applications, the ability to operate effectively within challenging atmospheric conditions enhances overall mission capabilities. Moreover, the reduced size and power requirements of LRFs equipped with advanced InGaAs APDs open new possibilities for integration into smaller platforms, such as unmanned aerial vehicles (UAVs) or soldier-worn systems. This can provide enhanced situational awareness and targeting capabilities at the individual or small unit level and potentially change tactical dynamics on the battlefield.

Beyond defense applications, these advancements in LRF technology have potential benefits for other fields as well. In the automotive industry, for example, more sensitive and compact LRFs could improve the performance of advanced driver assistance systems (ADAS) and autonomous vehicles and enhance their ability to detect and accurately range objects within various environmental conditions. In forestry and land management, improved LRFs could provide more accurate measurements of tree heights and canopy structures, even within dense forests where traditional methods struggle.

Companies at the forefront of this technology are actively developing and commercializing these advanced InGaAs APDs. As these devices become more widely available, we can expect to see a new generation of high-performance LRFs that push the boundaries of what’s possible in distance measurement and target acquisition systems.

The advancements in InGaAs APD technology represent a significant leap forward in LRF capabilities. By offering improved sensitivity, extended range, faster recovery times, and the potential for more compact and efficient designs, the latest generation of APDs are poised to revolutionize the field of distance measurement. As this technology matures and becomes more widely adopted, we can anticipate a new era of high-performance rangefinders that will enhance capabilities across a wide range of applications, from defense to automotive, surveying, and beyond. The future of LRF technology looks bright, with these advanced InGaAs APDs leading the way toward more precise, reliable, and versatile distance measurement solutions.
