IBS deposition process coats half-meter optics

Jan. 14, 2013

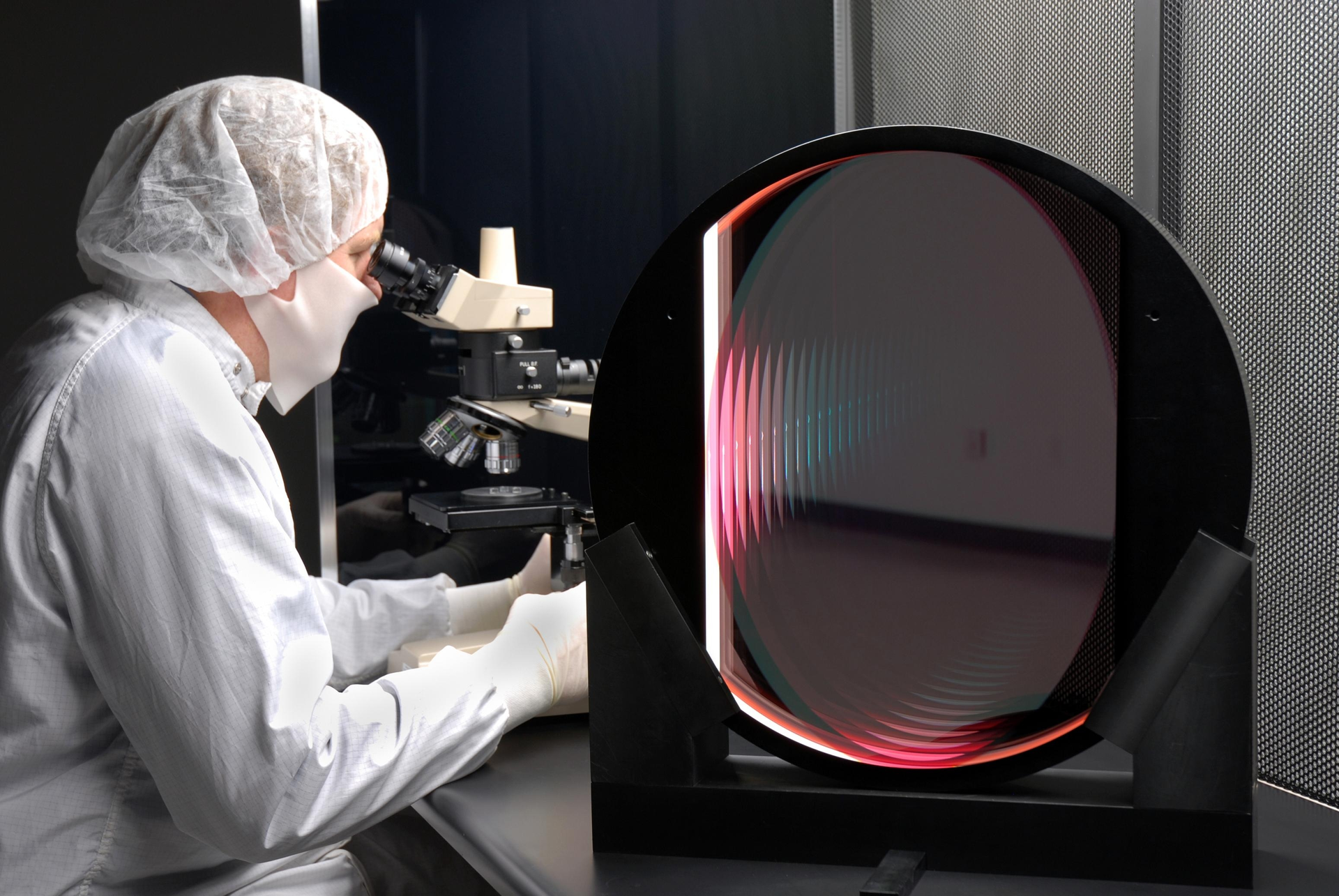

MLD Technologies (MLD) has successfully scaled up an ion-beam sputtering (IBS) deposition process to provide uniform (less than 1% variation), low-loss (less than 15 ppm total loss, defined for mirrors as the sum of absorption loss, transmission loss, and scatter loss) precision optical coatings for large optical substrates up to 500 mm in diameter.

MLD Technologies (MLD; Mountain View, CA) has successfully scaled up an ion-beam sputtering (IBS) deposition process to provide uniform (less than 1% variation), low-loss (less than 15 ppm total loss, defined for mirrors as the sum of absorption loss, transmission loss, and scatter loss) precision optical coatings for large optical substrates up to 500 mm in diameter. Using metal oxides, MLD can deposit optical coatings for use at wavelengths ranging from ultraviolet (UV) to mid-infrared (mid-IR).

MLD brought online two 1.5 m IBS coating chambers equipped with double planetary rotation fixturing that can deposit uniform coatings on two large-diameter optics per processing batch. Large-optics inspection and cleaning facilities were developed to support the coating operation. Metrology instrumentation includes 305-mm-aperture phase-measuring interferometers operating at 1064 nm and 1315 nm, as well as a 305-mm-precision (better than 3 nm rms flatness) reference flat to characterize uncoated substrates and coated optics. Laser-based photometers measure reflection and transmission on the full-size optics at both the design angle of incidence and polarization, and at numerous wavelengths. A large-optics spectrophotometer with a translation stage measures spectral performance over a broad wavelength range. Absorption and optical losses in the coatings can be measured directly with a photothermal common-path interferometer and with cavity-ringdown loss meters. Contact Ric Shimshock at [email protected] or Linda Lingg at [email protected].
