Laser Components bias controllers allow for high extinction ratio

Feb. 12, 2011
The MBC-DG-BT Series of LiNb03 Mach-Zehnder modulator bias controllers is designed for telecom and pulse applications.

The MBC-DG-BT Series of LiNb03 Mach-Zehnder modulator bias controllers is designed for telecom and pulse applications. It is continuously tunable, and the operating point can be locked at any point of the MZ transfer function. Low sensitivity allows it to lock with optical power down to -30 dBm, and it allows for high extinction ratio.
Laser Components
Chelmsford, Essex, England

www.lasercomponents.co.uk

More Products

-----

PRESS RELEASE

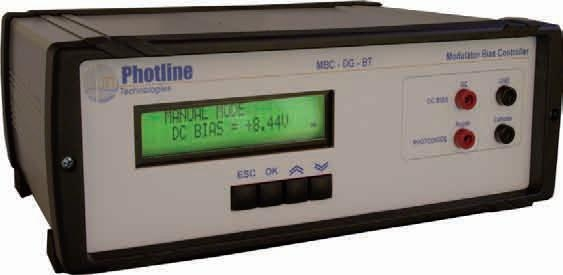

MBC-DG-BT Series

LiNb03 Mach-Zehnder modulator bias Controllers

The MBC-DG-BT is ideal for digital (telecom) applications and also for pulse applications. It can be used for analogue applications as well, but the low frequency dithering signal may be considered as unwanted in some analogue transmission cases.

The main features and improvements compared to the previous version:

it is a CONTINUOUSLY tunable bias controller. That means that one can lock the operating point at MIN, MAX, Quad+ and Quad- but also at ANY point of the MZ transfer function

it is very stable and allows for high extinction ratio

it has a low sensitivity and can lock even with a low optical power (-30 dBm)

it can use the internal modulator photodiode, or a photodiode external to the modulator

it can come with the PD/TAP option : a photodiode with a 5% PM tap coupler (if the modulator does not feature an internal PD, or for some low repetition rate pulse applications)

All Mach-Zehnder modulators have to be bias controlled, that opens a huge market for our MBC-DG!

-----
