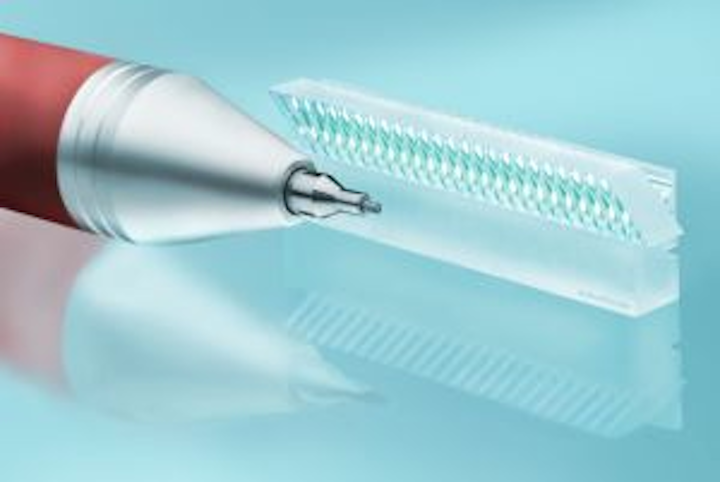

A high-power beam transformation system (BTS) is produced from fused silica with minimal oxygen-hydrogen bonds for use in high-performance laser systems with outputs over 10 kW for hardening, additive manufacturing, cutting, and welding applications, among others. The BTS can be used to couple laser light into a circular fiber and produce a free laser beam, and comprises the company's FAC160 fast-axis collimator and a diagonal lens array for a 90° rotation of the laser beam. Preassembled on a glass block (bottom tab) for easier handling and with a pitch of 200 or 400 µm, the system is capable of coupling up to 50 emitters with an output of approximately 250 to 500 W per bar and a 50% fill factor.
LASER World of Photonics China booth number: 3258
To Learn More:
Contact:LIMO
Headquarters: Dortmund, Germany
Product: Beam transformation system
Key Feature: Made from fused silica with minimal oxygen-hydrogen bonds
What LIMO says:
View more information on the beam transformation system.
