Palomar Technologies to showcase die bonder at SPIE Photonics West 2019

Jan. 25, 2019

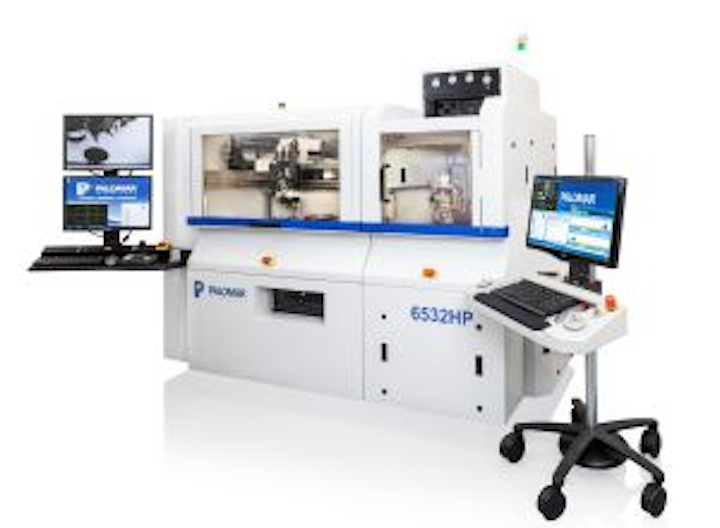

The Palomar 6532HP 1.5 µm die bonder is designed for the precise and high-volume device assembly requirements of the photonics market.

The Palomar 6532HP 1.5 µm die bonder is designed for the precise and high-volume device assembly requirements of the photonics market. Package assemblies are smoothly and efficiently transferred from presentation station to bonding station with a high-speed die shuttle. It also features the company's VisionPilot with Radar Referencing pattern recognition software to maximize throughput.

SPIE Photonics West booth number: 4522

To Learn More:

Contact: Palomar Technologies

Headquarters: Carlsbad, CA

Product: 6532HP die bonder

Key Feature: VisionPilot with Radar Referencing pattern recognition software to maximize throughput

What Palomar Technologies says:

View more information on the 6532HP die bonder.

View More Products

Locate a vendor or system integrator in our Buyer's Guide.

Share new products that you think are particularly interesting or helpful by contacting Lee Dubay, Associate Editor, Laser Focus World.
