PI nanopositioning controller provides 500 mA peak current

March 30, 2017

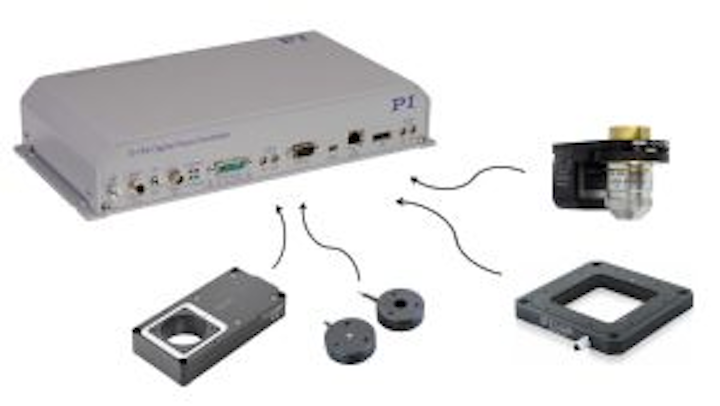

The E-754 nanopositioning controller is designed for closed-loop piezo mechanisms with capacitive position feedback sensors.

The E-754 nanopositioning controller is designed for closed-loop piezo mechanisms with capacitive position feedback sensors. Its servo has a 50 kHz update rate and 22-bit resolution. Digital linearization based on fourth-order polynomials suppresses linearity deviation to <0.01%. The driver provides 500 mA peak current and -30–135 V output voltage swing.
PI (Physik Instrumente)
Auburn, MA

www.pi-usa.us
