Thumb-drive-sized spectrometer achieves subnanometer resolution

Jan. 13, 2014
Nano Optic Devices has developed a chip-based spectrometer that is not only very compact, with packaged dimensions comparable to a typical USB thumb flash drive, but also achieves the subnanometer resolution typically found in larger laboratory-grade spectrometers the size of a laptop power supply.

Nano Optic Devices (Santa Clara, CA, and Troitsk, Russia) has developed a chip-based spectrometer that is not only very compact, with packaged dimensions comparable to a typical USB thumb flash drive, but also achieves the subnanometer resolution typically found in larger laboratory-grade spectrometers the size of a laptop power supply. The new spectrometers use digital planar holography (DPH) technology fabricated using CMOS processing to micro-engineer phase and polarization characteristics that manage and guide light beams inside a chip more efficiently than bulky traditional optics. The technology allows for automated nanoimprint-lithography production techniques with low manufacturing costs and high-reproducibility, solid-state optics that never need recalibration, and are insensitive to temperature, humidity, and vibration.

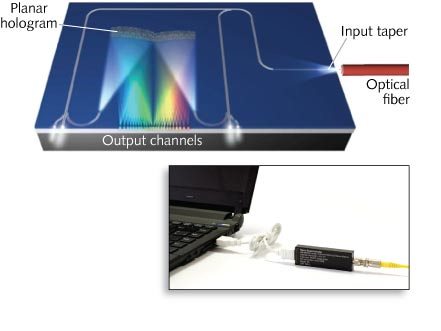

The DPH spectrometer core consists of millions of grooves ranging in width from several dozens to several hundred nanometers fabricated at the surface of a planar waveguide. These diffractive devices perform spectral decomposition of the input light (delivered through an optical fiber) by focusing the different spectral components at locations along the chip output where a linear CCD detector array is installed. Custom devices can be fabricated to operate in wavelength ranges from 500 to 1100 nm and 1100 to 1500 nm. Current standard products include 600–690 nm and 630–690/760–850 nm wavelength ranges with 0.18 nm resolution, and a 760–920 nm device with 0.15 nm resolution. Contact Paul Murphy at [email protected].
