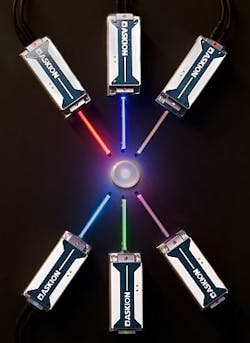

Frankfurt Laser Company laser diode module covers UV to NIR wavelengths
The HQML3 CW laser diode module is part of a flexible platform that covers the UV to NIR wavelength range using laser diodes and DPSS laser (532 nm) technology. Customizable beam profile and output power up to 300 mW are available. Equipped with an RS-232 port, the module is suited for medical diagnostics, biotechnology, flow cytometry, microscope spectroscopy, and bio-fluorescence applications.
Frankfurt Laser Co.
Friedrichsdorf, Germany
www.frlaserco.com
More Products
-----
PRESS RELEASE
Frankfurt Laser Company now represents Askion line-up of cw Laser Diode Module HQML3
FLC is a market leading manufacturer and distributor of laser diodes, laser diode modules and DPSS lasers. Askion is a leading innovator in the fields of biotechnology, optoelectronics and laser applications.
FLC now offers the Askion cw Laser Diode Module HQML3, which is ideal for the following applications:
• Medical Diagnostic
• Biotechnology
• Flow-cytometry
• Microscope Spectroscopy
• Bio-fluorescence
• General R & D
The HQML3 cw Laser Diode Module is made from a flexible platform that encompasses the UV to NIR wavelength range using laser diodes and DPSS laser (for 532nm) technology.
Wavelength, beam profile and output power are customer defined for user flexibility. Available wavelengths are 408, 445, 473, 488, 515, 532, 638, 650 and 685nm, with an option to add filters into the device for spectral clean-up. Powers of up to 300mW are available, which can also be adjusted manually.
An RS232 port provides access to command the unit and gives information on the unit status. The power unit (driven by 4.5 to 15V; max 2.5A) is integrated into the package providing the unit with a very small footprint 100x40x40mm.
The module can also be operated in different modes to provide power stability or constant current into the device and has polarisation better than 1:100 over the entire dynamic range.
An important feature of the HQML3 Askion cw Laser Diode Model is that it combines high quality at an affordable price.
www.frlaserco.com
[email protected]
-----
